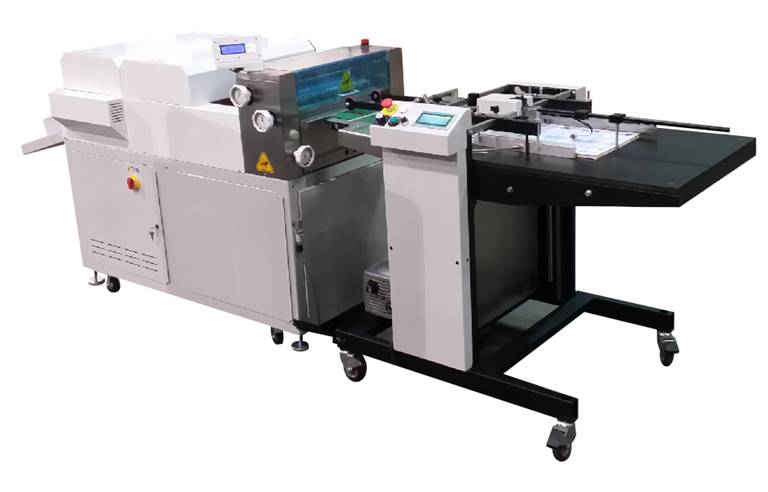

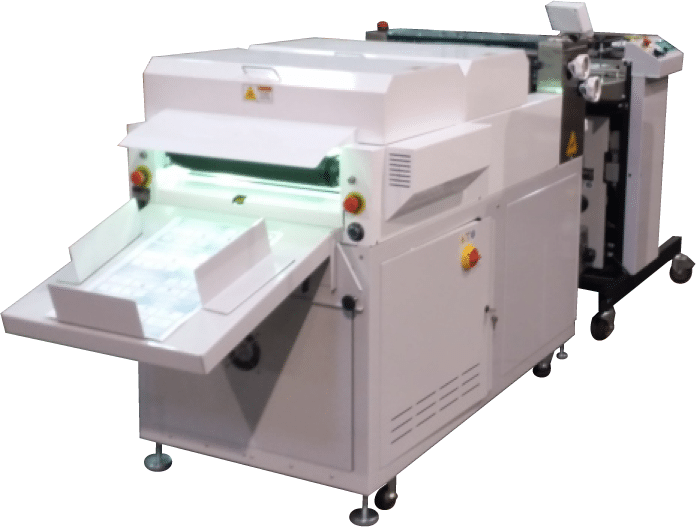

OmniCoat 1800 and 3000
Kluge is pleased to introduce the Kluge OmniCoat UV Roller Coater Series.
The OmniCoat 1800 and 3000 Series are part of Kluge’s expanded product line of UV roller coaters in 18”, 30”, and wide format sizes.
UV Coating Features
- Prevents scratching, fading and scuffing
- Protects against humidity, water protection
- Color / solids / mid-tone enhancements
- Increased detail, vibrancy, enhances color
- Choice of finishes, matte, gloss, or satin
Omni Advantage
- Manual or fully automatic, to over 5,000 Sheets per Hour

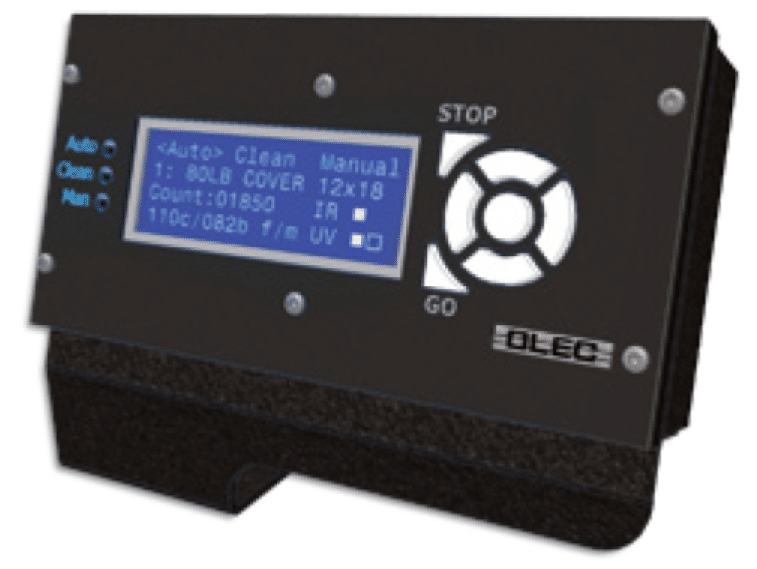

- One touch operation, for unique simple operation
- Small footprint will accommodate standard door widths
- Roll to any location
- Installation and training available
- 100% designed and manufactured in USA
- One year warranty
- Infra Red section enhances coating flow & adhesion
- Constant wattage ballasts for consistent results
- Idle mode for energy savings
| Maximum sheet size* | 18” x 40”+ (46 x 102cm+) |
| Minimum sheet size | 8.5” x 11” (22 x 28cm) |
| Supported paper weight | 148gsm to 600gsm |
| Conveyor width/height | 18” (45cm) |
| Conveyor speed Max | 150 ft/min (45 m/min) |
| Dimensions(L,W,H)** | 89” x 30” x 53” (226 x 77 x 135cm) |
| Weight | 1,300 lbs (590kg) |
| Max. lamp power | 200 watts per inch metal halide*** |

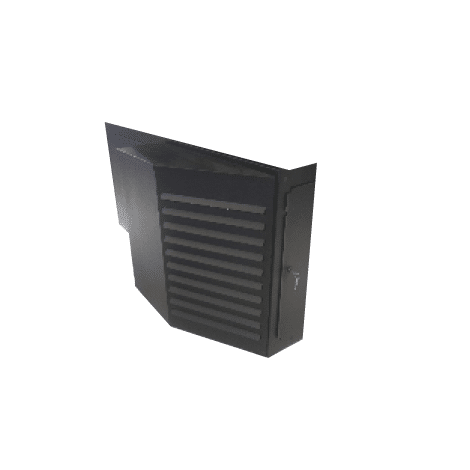

| Exhaust duct | 6” Diameter Round or optional filter |
| Exhaust air volume | 1,100 CFM |
| Electrical | 208–240v, 1ph, 60hz, 35amp*** |
| Paper type | Coated Stock |

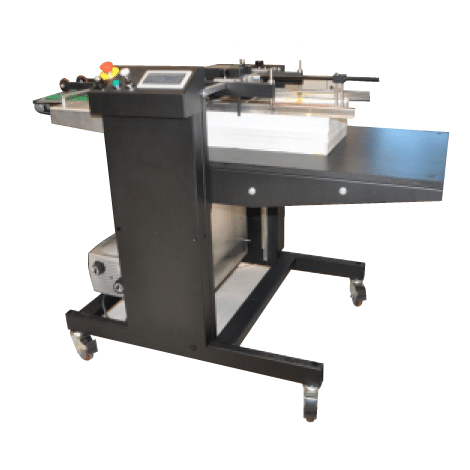

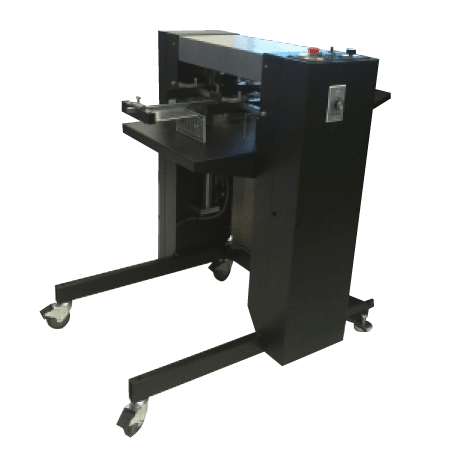

*Maximum sheet size length is limited by the size of an automatic feeder and/or stacker.
**Dimensions are for a handfed coater with catch tray. If bought with an automatic feeder or stacker the size will vary.
***With the high power option the maximum lamp power is 300 watts per inch and the electrical increases to 45amps.
50hz is available upon request
| Maximum sheet size* | 30” x 40”+ (76 x 102cm+) |
| Minimum sheet size | 8.5” x 11” (22 x 28cm) |
| Supported paper weight | 148gsm to 600gsm |
| Conveyor width/height | 30” (76cm) |
| Conveyor speed Max | 150 ft/min (45 m/min) |
| Dimensions(L,W,H)** | 100” x 50” x 53” (254 x 127 x 135cm) |
| Weight | 1,500 lbs (680kg) |
| Max. lamp power | 200/300 watts per inch metal halide |
| Exhaust duct | 8” diameter round |
| Exhaust air volume | 1,500 CFM |
| Electrical | 208–240v, 1ph, 60hz, 65amp |
| Paper type | Coated Stock |
*Maximum sheet size length is limited by the size of an automatic feeder and/or stacker.
**Dimensions are for a handfed coater with catch tray. If bought with an automatic feeder or stacker the size will vary.
50hz is available upon request
